java spi 机制

​ SPI 全称为 (Service Provider Interface) ，是JDK内置的一种服务提供发现机制。SPI是一种动态替换发现的机制， 比如有个接口，想运行时动态的给它添加实现，你只需要添加一个实现。我们经常遇到的就是java.sql.Driver接口，其他不同厂商可以针对同一接口做出不同的实现，mysql和postgresql都有不同的实现提供给用户，而Java的SPI机制可以为某个接口寻找服务实现。

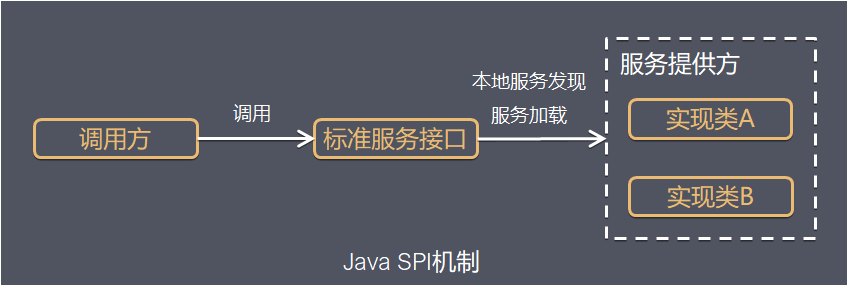

如上图所示，接口对应的抽象SPI接口；实现方实现SPI接口；调用方依赖SPI接口。

SPI接口的定义在调用方，在概念上更依赖调用方；组织上位于调用方所在的包中，实现位于独立的包中。

用途:

数据库DriverManager、Spring、ConfigurableBeanFactory等都用到了SPI机制.

这里以数据库DriverManager为例

1. Driver实现(Driver)

   驱动的类的静态代码块中，调用DriverManager的注册驱动方法, new一个自己当参数传给驱动管理器。


   package com.mysql.cj.jdbc;

   import java.sql.SQLException;

   public class Driver extends NonRegisteringDriver implements java.sql.Driver {
       // Register ourselves with the DriverManager
       static {
           try {
               java.sql.DriverManager.registerDriver(new Driver());
           } catch (SQLException E) {
               throw new RuntimeException("Can't register driver!");
           }
       }
       public Driver() throws SQLException {
           // Required for Class.forName().newInstance()
       }
   }


2. Mysql DriverManager实现(DriverManager)

   内部的静态代码块中有一个loadInitialDrivers方法,

   方法中用到了查找服务实现的工具类ServiceLoader.

   public class DriverManager {
       static {
               loadInitialDrivers();
               println("JDBC DriverManager initialized");
       }

       private static void loadInitialDrivers() {
           String drivers;
           try {
               drivers = AccessController.doPrivileged(new PrivilegedAction<String>() {
                   public String run() {
                       return System.getProperty("jdbc.drivers");
                   }
               });
           } catch (Exception ex) {
               drivers = null;
           }
           // If the driver is packaged as a Service Provider, load it.
           // Get all the drivers through the classloader
           // exposed as a java.sql.Driver.class service.
           // ServiceLoader.load() replaces the sun.misc.Providers()

           AccessController.doPrivileged(new PrivilegedAction<Void>() {
               public Void run() {

                   ServiceLoader<Driver> loadedDrivers = ServiceLoader.load(Driver.class);
                   Iterator<Driver> driversIterator = loadedDrivers.iterator();

                   /* Load these drivers, so that they can be instantiated.
                    * It may be the case that the driver class may not be there
                    * i.e. there may be a packaged driver with the service class
                    * as implementation of java.sql.Driver but the actual class
                    * may be missing. In that case a java.util.ServiceConfigurationError
                    * will be thrown at runtime by the VM trying to locate
                    * and load the service.
                    *
                    * Adding a try catch block to catch those runtime errors
                    * if driver not available in classpath but it's
                    * packaged as service and that service is there in classpath.
                    */
                   try{
                       while(driversIterator.hasNext()) {
                           driversIterator.next();
                       }
                   } catch(Throwable t) {
                   // Do nothing
                   }
                   return null;
               }
           });

           println("DriverManager.initialize: jdbc.drivers = " + drivers);

           if (drivers == null || drivers.equals("")) {
               return;
           }
           String[] driversList = drivers.split(":");
           println("number of Drivers:" + driversList.length);
           for (String aDriver : driversList) {
               try {
                   println("DriverManager.Initialize: loading " + aDriver);
                   Class.forName(aDriver, true,
                           ClassLoader.getSystemClassLoader());
               } catch (Exception ex) {
                   println("DriverManager.Initialize: load failed: " + ex);
               }
           }
       }
   }


3. SPI机制查找驱动(ServiceLoader)

   可以看到加载META-INF/services/ 文件夹下类名为文件名（这里相当于Driver.class.getName()）的资源，然后将其加载到虚拟机, 加载SPI扫描到的驱动来触发他们的初始化。即触发他们的static代码块.

   public final class ServiceLoader<S>
       implements Iterable<S>
   {

           private static final String PREFIX = "META-INF/services/";

       ......
           private class LazyIterator  implements Iterator<S> {
               private boolean hasNextService() {
                   if (nextName != null) {
                       return true;
                   }
                   if (configs == null) {
                       try {
                           String fullName = PREFIX + service.getName();
                           if (loader == null)
                               configs = ClassLoader.getSystemResources(fullName);
                           else
                               configs = loader.getResources(fullName);
                       } catch (IOException x) {
                           fail(service, "Error locating configuration files", x);
                       }
                   }
                   while ((pending == null) || !pending.hasNext()) {
                       if (!configs.hasMoreElements()) {
                           return false;
                       }
                       pending = parse(service, configs.nextElement());
                   }
                   nextName = pending.next();
                   return true;
               }
           }
   }
